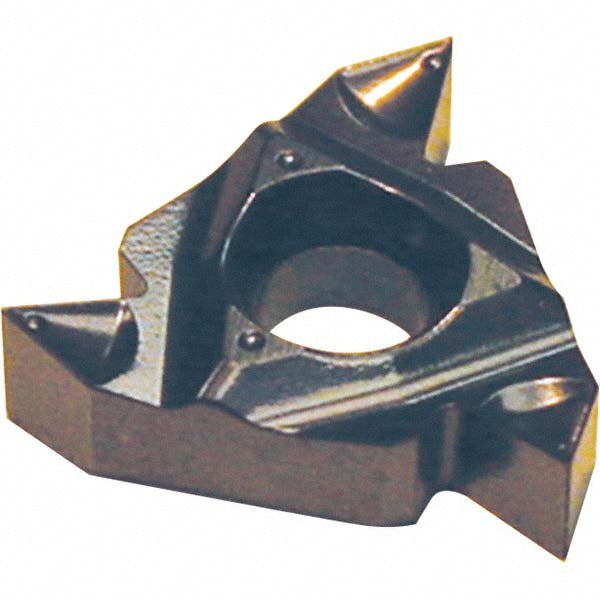

3/8" IC Carbide Insert, Grade AC22R, AlTiN - Tool-Flo 502B4800AC22A
MFR# 502B4800AC22ASeries Laydown
$17.22List $22.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAC22R
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 502B4800AC22A is a carbide indexable insert, grade AC22R, AlTiN coated. Suited for universal.
Specifications
ChipbreakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0020
Cutting edge to theoretical edge length0.0400
Face of insert to tip centerline0.0600
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16NR
Manufacturer gradeAC22R
Number of teeth per side1
Primary workpiece materialUniversal
Threads per inch8-48
Thread standard60 Deg V
Thread typeInternal
