Tool-Flo

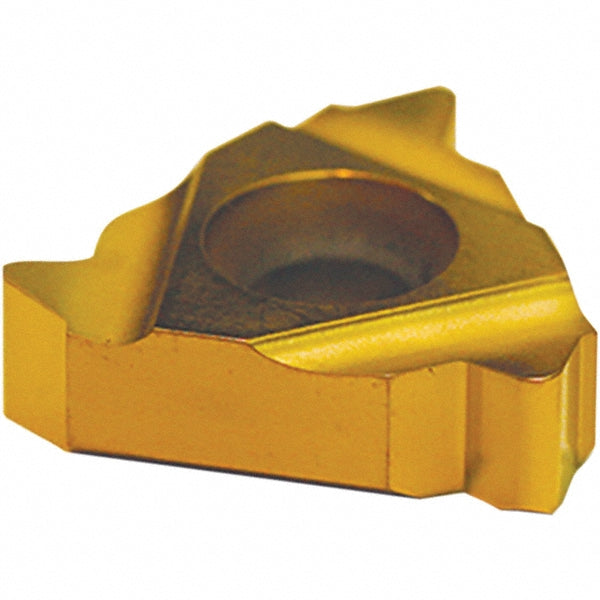

1/2" IC Solid Carbide Insert, Grade AC22F, Coated - Tool-Flo 5121000AC22F
MFR# 5121000AC22FSeries Laydown
$25.94List $33.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC22F
MaterialSolid Carbide
CoatingCoated
Description
The Tool-Flo 5121000AC22F is a solid carbide indexable insert, grade AC22F, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Cutting edge to theoretical edge length0.0800
Face of insert to tip centerline0.1000
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style22NR
Manufacturer gradeAC22F
Material gradeMicrograin
Number of teeth per side1
Primary workpiece materialUniversal
Threads per inch4
Thread standardAPI Rotary Shoulder Connections
Thread typeInternal
