Tool-Flo

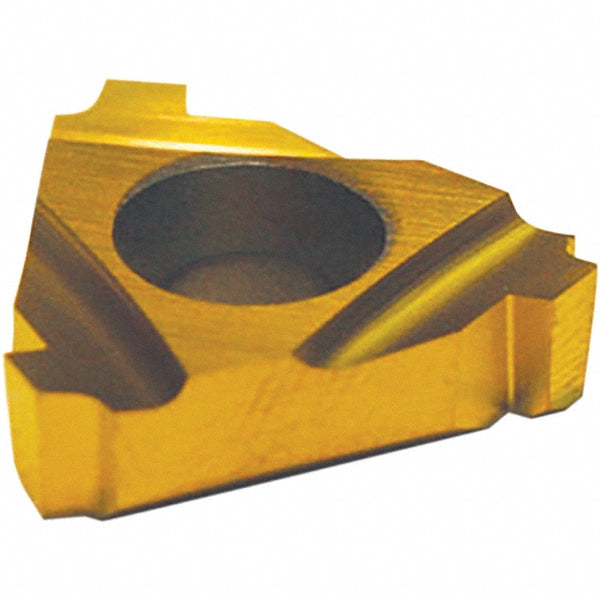

1/2" IC Solid Carbide Insert, Grade AC50D, Coated - Tool-Flo 5121600AC50D
MFR# 5121600AC50DSeries Laydown
$21.06List $26.53
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC50D
MaterialSolid Carbide
CoatingCoated
Description
The Tool-Flo 5121600AC50D is a solid carbide indexable insert, grade AC50D, Coated coated. Suited for cast iron, steel.
Specifications
Coating finishCoated
Coating processPVD
Cutting edge to theoretical edge length0.0870
Face of insert to tip centerline0.0810
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style22NR
Manufacturer gradeAC50D
Material gradeMicrograin
Number of teeth per side1
Primary workpiece materialCast Iron; Steel
Threads per inch5
Thread standardAPI Buttress
Thread typeInternal
