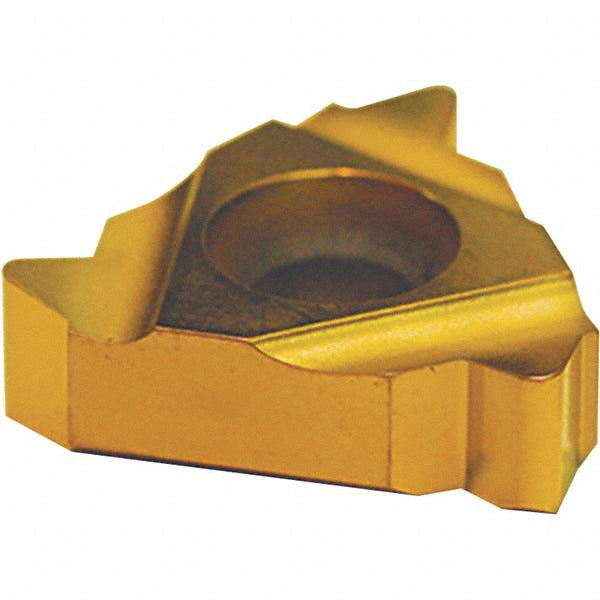

5/8" IC Solid Carbide Insert, Grade AC22F, AlTiN - Tool-Flo 5221000AC22F
MFR# 5221000AC22FSeries Laydown
$26.81List $33.19
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
GradeAC22F
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 5221000AC22F is a solid carbide indexable insert, grade AC22F, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Cutting edge to theoretical edge length0.0800
Face of insert to tip centerline0.1100
Included angle60
Inscribed circle in5/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code27
Insert style27NR
Manufacturer gradeAC22F
Number of teeth per side1
Primary workpiece materialUniversal
Threads per inch4
Thread standardAPI Rotary Shoulder Connections
Thread typeInternal
