Tool-Flo

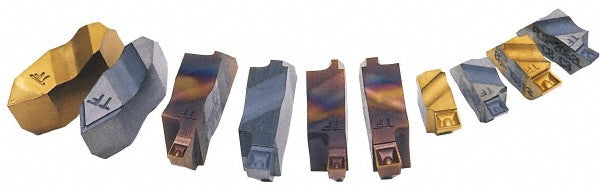

FLG-2041R Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 562641RN4C
MFR# 562641RN4CISO/ANSI# FLG-2041RSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 562641RN4C is a FLG-2041R solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.2190
Cutting width0.0410
Full radiusNo
Gage diameter in3/16
Insert handRight Hand
Insert materialSolid Carbide
Insert size2041
Insert size code2041
Insert styleFLG
Iso codeFLG-2041R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Multi use toolNo
Overall width0.1500
RakePositive
Rake angle55.00
Secondary workpiece materialStainless Steel
