Tool-Flo

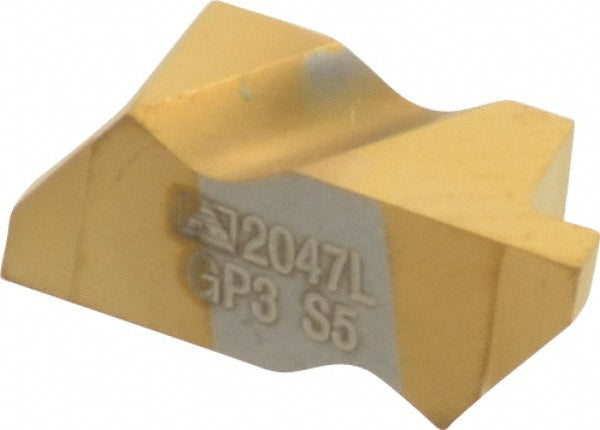

FLG-2047L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 562647LJ5R
MFR# 562647LJ5RISO/ANSI# FLG-2047LSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 562647LJ5R is a FLG-2047L solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.2190
Cutting width in3/64
Full radiusNo
Gage diameter in3/16
Insert handLeft Hand
Insert materialSolid Carbide
Insert size2047
Insert size code2047
Insert styleFLG
Iso codeFLG-2047L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Multi use toolNo
Overall width0.1500
RakePositive
Rake angle55.00
