FLG-2062L Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 562662LAC3R

Tool-Flo

FLG-2062L Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 562662LAC3R

MFR# 562662LAC3RISO/ANSI# FLG-2062LCat# FLG-2062LSeries Flo-Lock

$25.98List $33.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN

Description

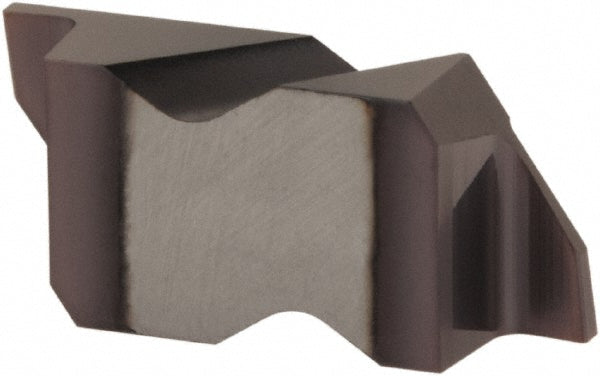

The Tool-Flo 562662LAC3R is a FLG-2062L solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.

Specifications

Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.2190
Cutting width0.0620
Full radiusNo
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size2
Insert size2062
Insert size code2062
Insert styleFLG
Insert thickness0.1500
Iso codeFLG-2062L
Lead angle0
Manufacturers catalog numberFLG-2062L
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0100
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Single or double endDouble
