Tool-Flo
FLG-2125L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 562825LJ5R
MFR# 562825LJ5RISO/ANSI# FLG-2125LSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description

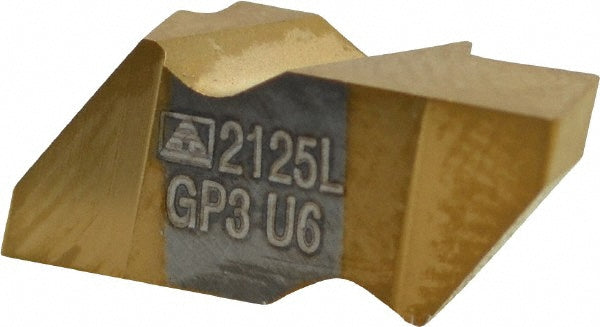

The Tool-Flo 562825LJ5R is a FLG-2125L solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.2190
Cutting width0.1252
Full radiusNo
Gage diameter in3/16
Insert handLeft Hand
Insert materialSolid Carbide
Insert size2125
Insert size code2125
Insert styleFLG
Iso codeFLG-2125L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1500
RakePositive
Rake angle55.00
