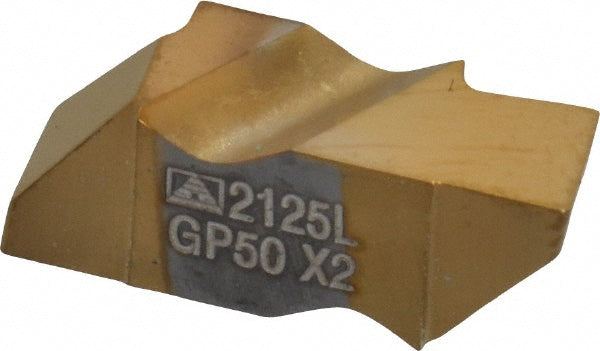

FLG-2125L Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 562825LN4C
MFR# 562825LN4CISO/ANSI# FLG-2125LSeries Flo-Lock
$24.71List $31.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 562825LN4C is a FLG-2125L solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.2190
Cutting width0.1252
Full radiusNo
Gage diameter in3/16
Insert handLeft Hand
Insert materialSolid Carbide
Insert size2125
Insert size code2125
Insert styleFLG
Iso codeFLG-2125L
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1500
RakePositive
Rake angle55.00
Secondary workpiece materialStainless Steel
