FLG-2125R-CB Carbide Insert, Grade GP50, TiN - Tool-Flo 562825PRN4C
MFR# 562825PRN4CISO/ANSI# FLG-2125R-CBSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description

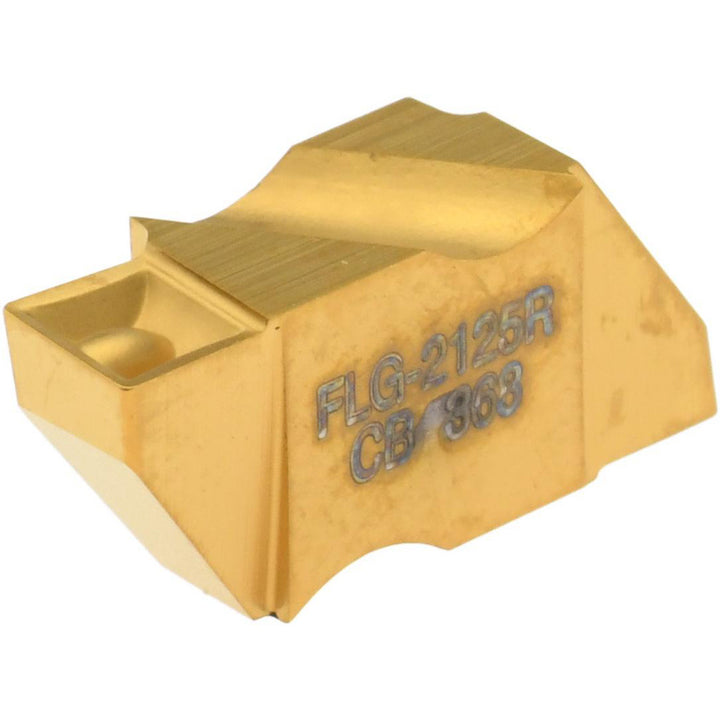

The Tool-Flo 562825PRN4C is a FLG-2125R-CB carbide indexable insert, grade GP50, TiN coated.
Specifications
Chip breakerCB
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.2190
Cutting width0.1252
Full radiusNo
Gage diameter in3/16
Insert handRight Hand
Insert materialCarbide
Insert size2125
Insert size code2125CB
Insert styleFLG
Iso codeFLG-2125R-CB
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall width0.15
RakePositive
Rake angle55
Secondary workpiece materialStainless Steel
