Tool-Flo

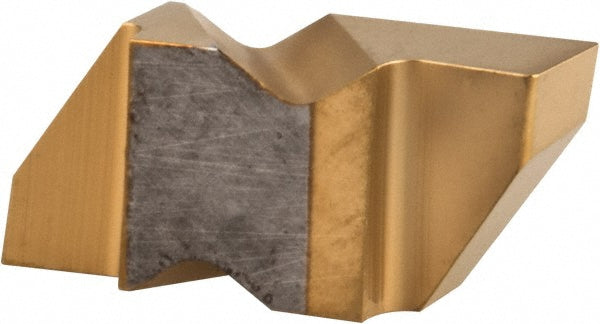

FLG-2125R Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 562825RN4C
MFR# 562825RN4CISO/ANSI# FLG-2125RSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 562825RN4C is a FLG-2125R solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.2190
Cutting width0.1252
Full radiusNo
Gage diameter0.1875
Insert handRight Hand
Insert materialSolid Carbide
Insert size2125
Insert size code2125
Insert styleFLG
Iso codeFLG-2125R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1500
RakePositive
Rake angle55.00
Secondary workpiece materialSteel
