FLG-3031L Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 563631LN4C
MFR# 563631LN4CISO/ANSI# FLG-3031LCat# FLG-3031LSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description

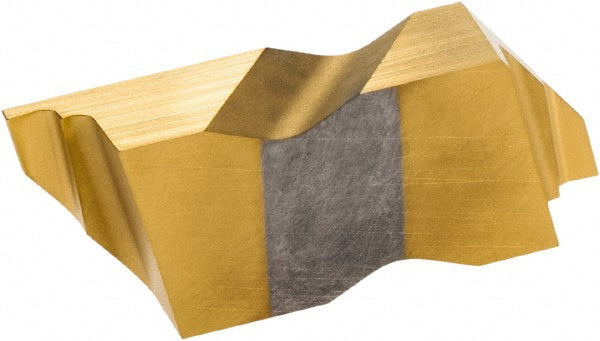

The Tool-Flo 563631LN4C is a FLG-3031L solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.3440
Cutting width0.0310
Full radiusNo
Gage diameter0.3750
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3031
Insert size code3031
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3031L
Lead angle3
Manufacturers catalog numberFLG-3031L
Manufacturer gradeGP50
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Multi use toolNo
Secondary workpiece materialStainless Steel
Single or double endDouble
