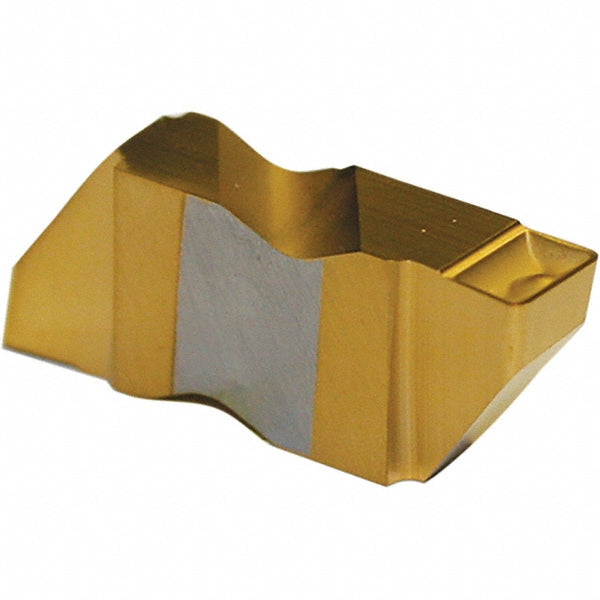

FLG3031R-CB Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 563631PRJ5R
MFR# 563631PRJ5RISO/ANSI# FLG3031R-CBCat# FLG-3031R-CBSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 563631PRJ5R is a FLG3031R-CB solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Chip breakerCB
Coating finishTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.3440
Cutting width0.0310
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3031
Insert size code3031CB
Insert styleFLG
Insert thickness0.1950
Iso codeFLG3031R-CB
Lead angle3
Manufacturers catalog numberFLG-3031R-CB
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Multi use toolNo
Single or double endDouble
