Tool-Flo

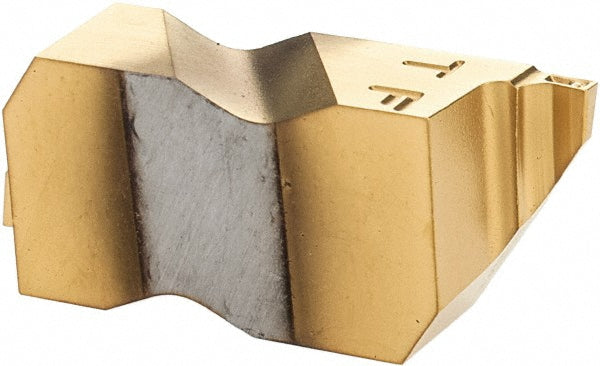

FLG3031R-CB Carbide Insert, Grade GP50, TiN - Tool-Flo 563631PRN4C
MFR# 563631PRN4CISO/ANSI# FLG3031R-CBSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo 563631PRN4C is a FLG3031R-CB carbide indexable insert, grade GP50, TiN coated.
Specifications
Chip breakerCB
Coating finishTiN
Coating processPVD
Corner radius0.0020 - 0.0050
Cutting height0.3440
Cutting width0.0311
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert materialCarbide
Insert size3031
Insert size code3031CB
Insert styleFLG
Iso codeFLG3031R-CB
Lead angle3
Manufacturer gradeGP50
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall width0.195
Secondary workpiece materialStainless Steel
