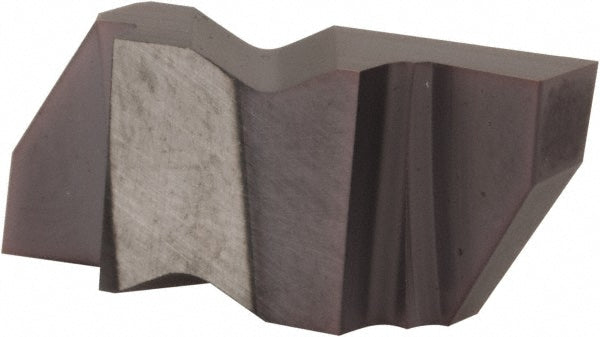

FLG-3031R Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563631RAC50C
MFR# 563631RAC50CISO/ANSI# FLG-3031RCat# FLG-3031RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563631RAC50C is a FLG-3031R solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.0500
Cutting width0.0310
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size0.375
Insert size code3031
Insert styleFLG
Iso codeFLG-3031R
Lead angle3
Manufacturers catalog numberFLG-3031R
Manufacturer gradeAC50
Material gradeC5; C6
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Multi use toolNo
Primary workpiece materialSteel
RakeNeutral
Rake angle0.00
Single or double endDouble
