Tool-Flo
FLG-3062L Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563662LAC3R
MFR# 563662LAC3RISO/ANSI# FLG-3062LCat# FLG-3062LSeries Flo-Lock
$25.98List $33.32
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN
Description

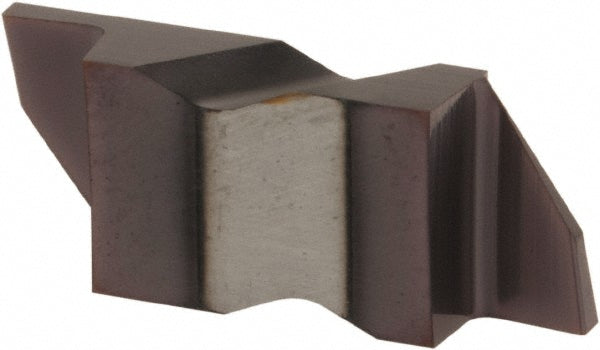

The Tool-Flo 563662LAC3R is a FLG-3062L solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0620
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size3062
Insert size code3062
Insert styleFLG
Iso codeFLG-3062L
Lead angle0
Manufacturers catalog numberFLG-3062L
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0100
Maximum depth of cut0.1200
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Single or double endDouble
