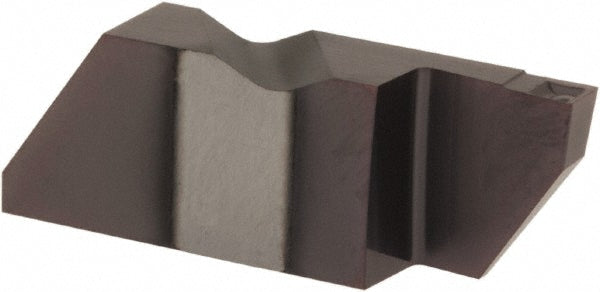

FLG-3062R-CB Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563662PRAC50C
MFR# 563662PRAC50CISO/ANSI# FLG-3062R-CBSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563662PRAC50C is a FLG-3062R-CB solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0618
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size3062
Insert size code3062CB
Insert styleFLG
Iso codeFLG-3062R-CB
Lead angle0
Manufacturer gradeAC50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.1200
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Msc manufacturer numberFLG-3062R/L-CB
Multi use toolNo
Overall width0.1950
Primary workpiece materialSteel
RakeNeutral
Single or double endDouble
