Tool-Flo

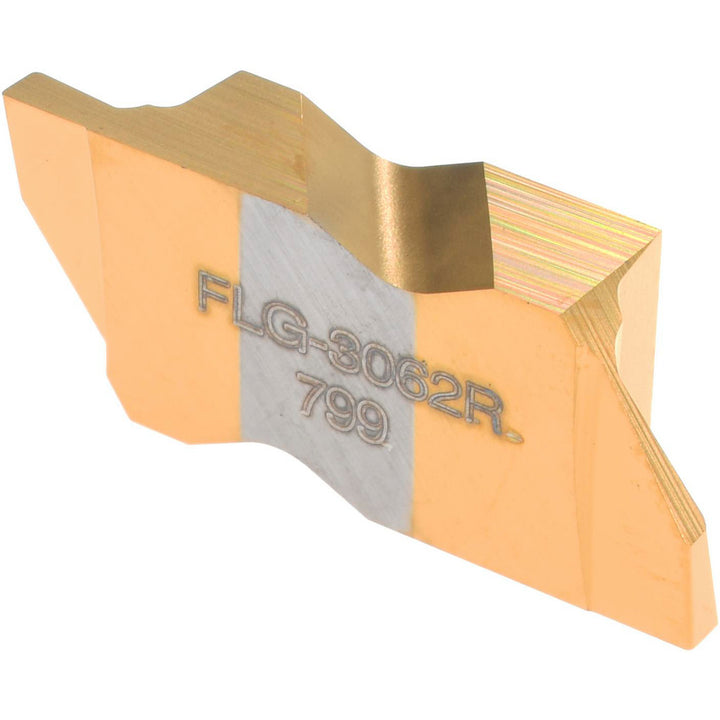

FLG-3062R Carbide Insert, Grade GP50, TiN - Tool-Flo 563662RN4C
MFR# 563662RN4CISO/ANSI# FLG-3062RSeries Flo-Lock
$24.71List $31.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo 563662RN4C is a FLG-3062R carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.0618
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialCarbide
Insert size3062
Insert size code3062
Insert styleFLG
Iso codeFLG-3062R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1201
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall width0.195
RakePositive
Rake angle55
Secondary workpiece materialStainless Steel
