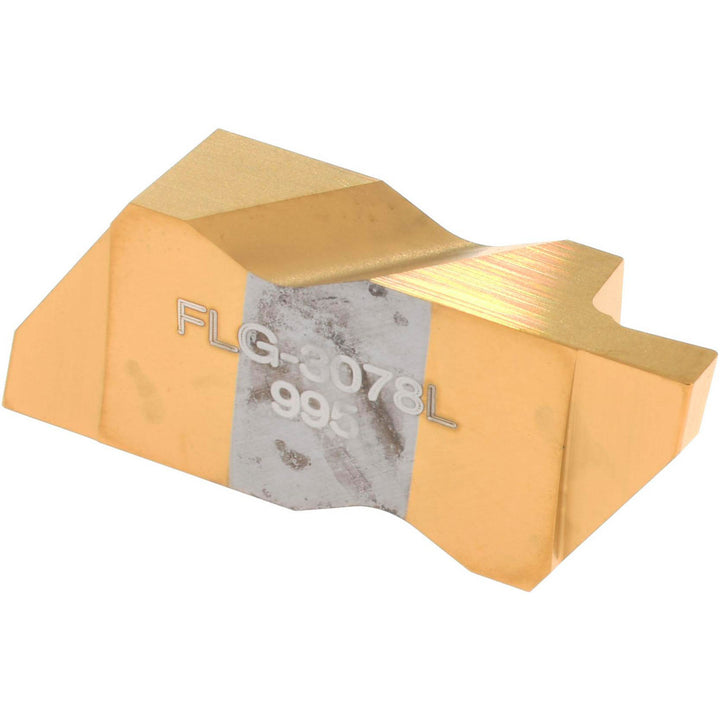

FLG-3078L Carbide Insert, Grade GP50, TiN - Tool-Flo 563678LN4C
MFR# 563678LN4CISO/ANSI# FLG-3078LSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo 563678LN4C is a FLG-3078L carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width in5/64
Full radiusNo
Gage diameter in3/8
Insert handLeft Hand
Insert materialCarbide
Insert size3078
Insert size code3078
Insert styleFLG
Iso codeFLG-3078L
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1201
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall width0.195
RakePositive
Rake angle55
Secondary workpiece materialStainless Steel
