Tool-Flo

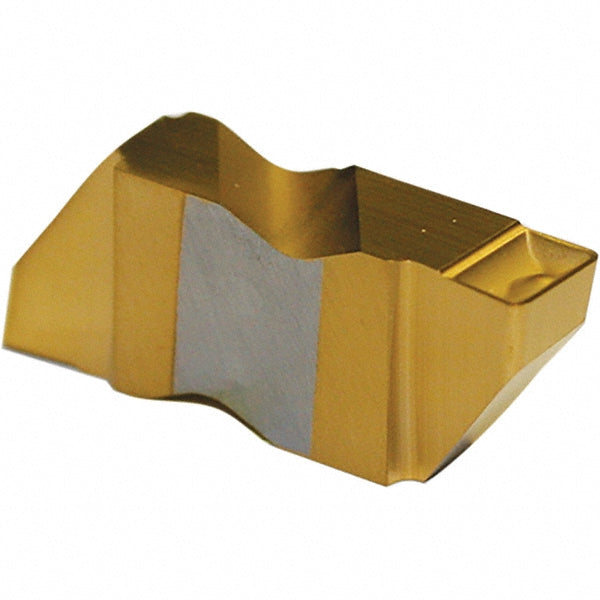

FLG-3088R-CB Carbide Insert, Grade GP50, TiN - Tool-Flo 563688PRN4C
MFR# 563688PRN4CISO/ANSI# FLG-3088R-CBCat# FLG-3088R-CBSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo 563688PRN4C is a FLG-3088R-CB carbide indexable insert, grade GP50, TiN coated.
Specifications
Chip breakerCB
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.0880
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3088
Insert size code3088CB
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3088R-CB
Lead angle3
Manufacturers catalog numberFLG-3088R-CB
Manufacturer gradeGP50
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Secondary workpiece materialStainless Steel
