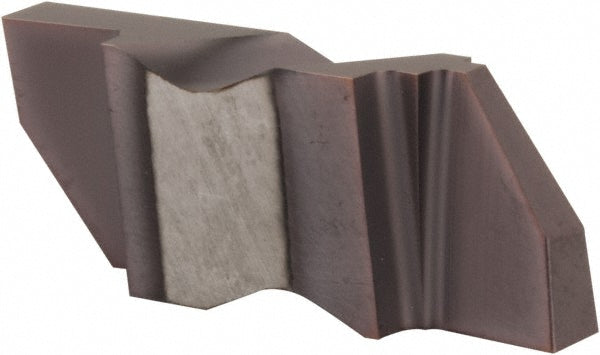

FLG-3094L-CB Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563694PLAC3R

Tool-Flo

FLG-3094L-CB Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563694PLAC3R

MFR# 563694PLAC3RISO/ANSI# FLG-3094L-CBCat# FLG-3094L-CBSeries Flo-Lock

$25.98List $33.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo 563694PLAC3R is a FLG-3094L-CB solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.

Specifications

Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.1800
Cutting width0.0940
Full radiusNo
Gage diameter0.3750
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size0.375
Insert size code3094CB
Insert styleFLG
Iso codeFLG-3094L-CB
Lead angle3
Manufacturers catalog numberFLG-3094L-CB
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0100
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Rake angle0.00
Single or double endDouble
