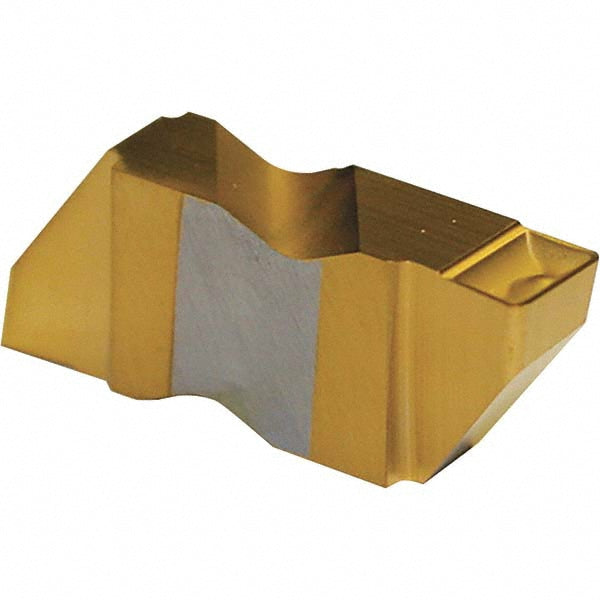

FLG-3094L-CB Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 563694PLN4C
MFR# 563694PLN4CISO/ANSI# FLG-3094L-CBSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 563694PLN4C is a FLG-3094L-CB solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Chip breakerCB
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0941
Full radiusNo
Gage diameter0.3750
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3094
Insert size code3094CB
Insert styleFLG
Iso codeFLG-3094L-CB
Lead angle3
Manufacturer gradeGP50
Maximum corner radius0.0100
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
Secondary workpiece materialStainless Steel
