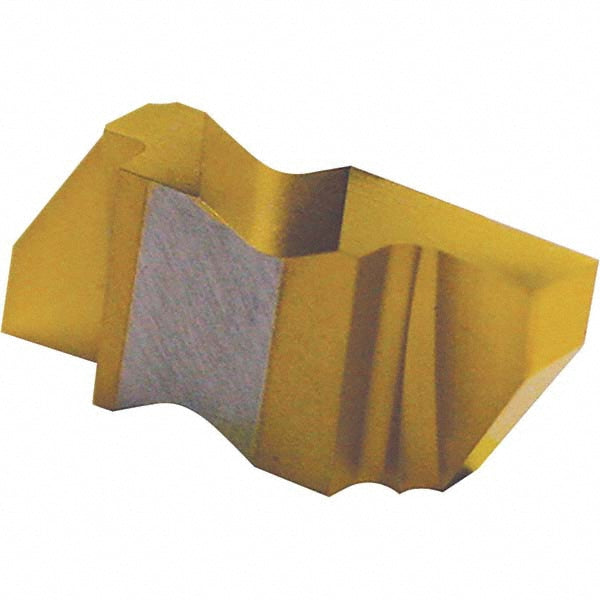

FLG-3094R Solid Carbide Insert, Grade C3 - Tool-Flo 563694RA3
MFR# 563694RA3ISO/ANSI# FLG-3094RCat# FLG-3094RSeries Flo-Lock
$22.92List $29.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeC3
MaterialSolid Carbide
Description
The Tool-Flo 563694RA3 is a FLG-3094R solid carbide indexable insert, grade C3.
Specifications
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0940
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3094
Insert size code3094
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3094R
Lead angle3
Manufacturers catalog numberFLG-3094R
Manufacturer gradeC3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Single or double endDouble
