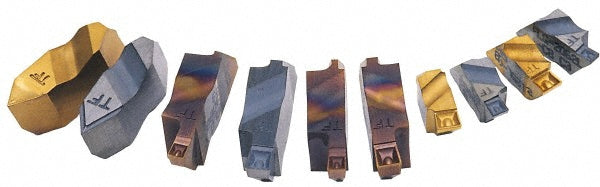

FLG-3105L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 563805LJ5R
MFR# 563805LJ5RISO/ANSI# FLG-3105LSeries Flo-Lock
$24.71List $31.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 563805LJ5R is a FLG-3105L solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.1050
Full radiusNo
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3105
Insert size code3105
Insert styleFLG
Iso codeFLG-3105L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
