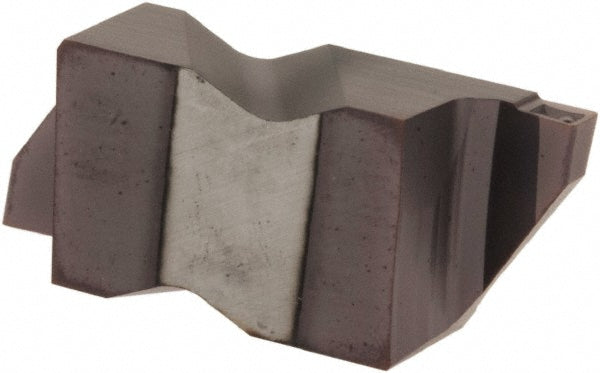

FLG-3105R Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563805RAC3R

Tool-Flo

FLG-3105R Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563805RAC3R

MFR# 563805RAC3RISO/ANSI# FLG-3105RCat# FLG-3105RSeries Flo-Lock

$25.98List $33.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo 563805RAC3R is a FLG-3105R solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.

Specifications

Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.1050
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3105
Insert size code3105
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3105R
Lead angle0
Manufacturers catalog numberFLG-3105R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0100
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Single or double endDouble
