Tool-Flo

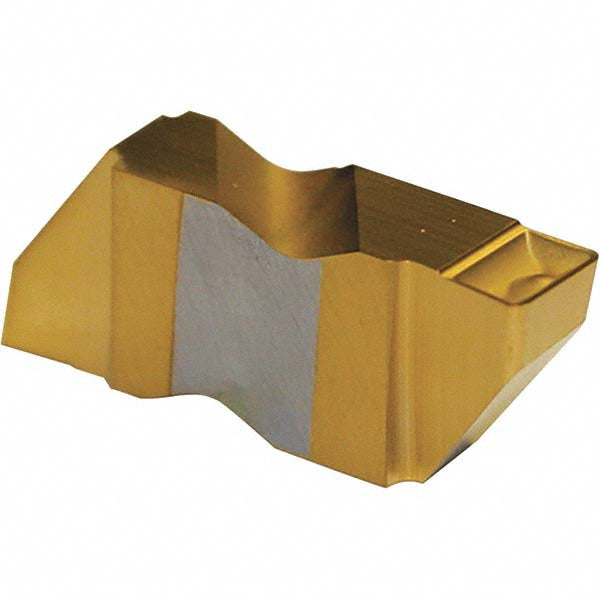

FLG-3125R-CB Carbide Insert, Grade C3 - Tool-Flo 563825PRA3
MFR# 563825PRA3ISO/ANSI# FLG-3125R-CBCat# FLG-3125R-CBSeries Flo-Lock
$22.92List $29.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeC3
MaterialCarbide
Description
The Tool-Flo 563825PRA3 is a FLG-3125R-CB carbide indexable insert, grade C3.
Specifications
Chip breakerP
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.125
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3125
Insert size code3125CB
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3125R-CB
Lead angle3
Manufacturers catalog numberFLG-3125R-CB
Manufacturer gradeC3
Material gradeMicrograin
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
