Tool-Flo

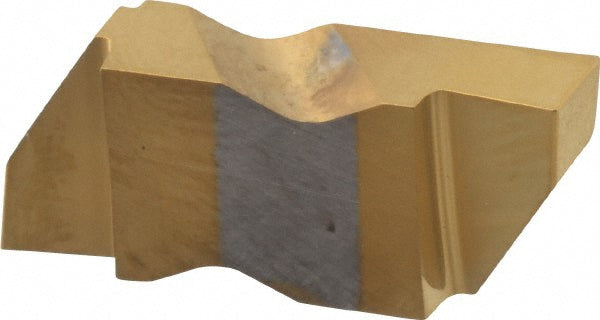

FLG-3156R Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 563856RN4C
MFR# 563856RN4CISO/ANSI# FLG-3156RSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 563856RN4C is a FLG-3156R solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.1560
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size3156
Insert size code3156
Insert styleFLG
Iso codeFLG-3156R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
Secondary workpiece materialStainless Steel
