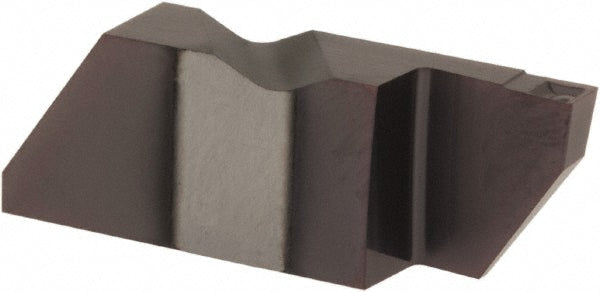

FLG-3189R-CB Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563889PRAC50C
MFR# 563889PRAC50CISO/ANSI# FLG-3189R-CBCat# FLG-3189R-CBSeries Flo-Lock
$24.15List $30.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563889PRAC50C is a FLG-3189R-CB solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0200 to 0.0250
Cutting height0.3440
Cutting width0.1890
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size3189
Insert size code3189CB
Insert styleFLG
Iso codeFLG-3189R-CB
Lead angle0
Manufacturers catalog numberFLG-3189R-CB
Manufacturer gradeAC50
Material gradeC5; C6
Maximum corner radius0.0250
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0200
Multi use toolNo
Overall width0.1950
Primary workpiece materialSteel
RakeNeutral
Single or double endDouble
