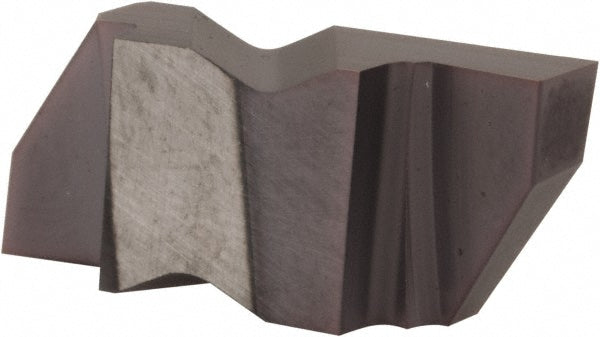

FLG-3189R Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563889RAC50C
MFR# 563889RAC50CISO/ANSI# FLG-3189RCat# FLG-3189RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563889RAC50C is a FLG-3189R solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0200 to 0.0250
Cutting height0.1800
Cutting width0.1890
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size0.375
Insert size code3189
Insert styleFLG
Iso codeFLG-3189R
Lead angle3
Manufacturers catalog numberFLG-3189R
Manufacturer gradeAC50
Material gradeC5; C6
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0200
Multi use toolNo
Primary workpiece materialSteel
RakeNeutral
Rake angle0.00
Single or double endDouble
