Tool-Flo
FLG-3M100R-CB Carbide Insert, Grade GP50, TiN - Tool-Flo 563M100PRN4C
MFR# 563M100PRN4CISO/ANSI# FLG-3M100R-CBCat# FLG-3M100R-CBSeries Flo-Lock
$24.71List $31.14
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description

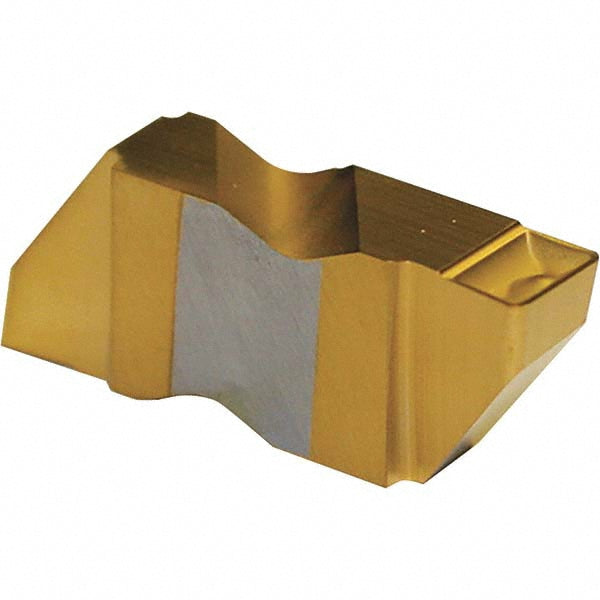

The Tool-Flo 563M100PRN4C is a FLG-3M100R-CB carbide indexable insert, grade GP50, TiN coated.
Specifications
Chip breakerCB
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.0394
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert size code3M100CB
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3M100R-CB
Lead angle3degree
Manufacturers catalog numberFLG-3M100R-CB
Manufacturer gradeGP50
Maximum depth of cut0.0748
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Secondary workpiece materialSteel
