Tool-Flo
FLG-4125L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 564825LJ5R
MFR# 564825LJ5RISO/ANSI# FLG-4125LSeries Flo-Lock
$35.02List $44.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description

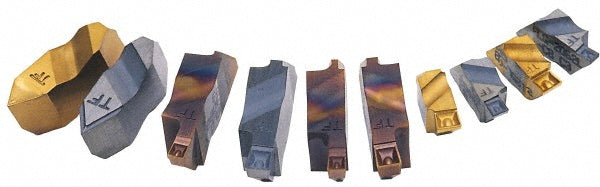

The Tool-Flo 564825LJ5R is a FLG-4125L solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.4530
Cutting width0.1252
Full radiusNo
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size4125
Insert size code4125
Insert styleFLG
Iso codeFLG-4125L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.2550
RakePositive
Rake angle55.00
Secondary workpiece materialSteel
