Tool-Flo

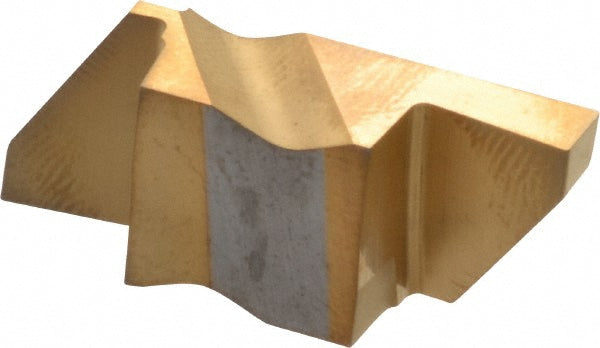

FLG-4125R Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 564825RN4C
MFR# 564825RN4CISO/ANSI# FLG-4125RSeries Flo-Lock
$35.02List $44.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 564825RN4C is a FLG-4125R solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.4530
Cutting width in1/8
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size4125
Insert size code4125
Insert styleFLG
Iso codeFLG-4125R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.2550
RakePositive
Rake angle55.00
Secondary workpiece materialSteel
