Tool-Flo

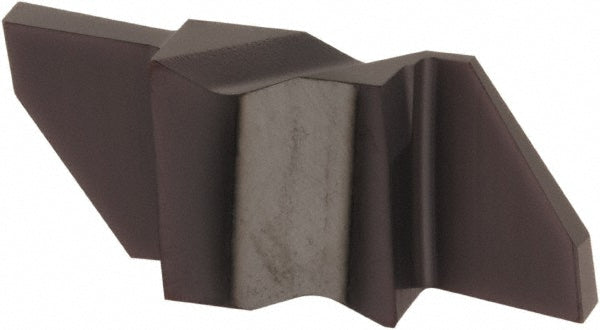

Carbide Insert, Grade AC3, AlTiN - Tool-Flo 572462RAC3R
MFR# 572462RAC3RCat# FLGP-2062RSeries Flo-Lock
$23.92List $30.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 572462RAC3R is a carbide indexable insert, grade AC3, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.2190
Cutting width0.062
Full radiusNo
Insert handRight Hand
Insert materialCarbide
Insert size2062
Insert styleFLGP
Insert thickness0.1500
Lead angle0
Manufacturers catalog numberFLGP-2062R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
RakePositive
