Tool-Flo
FLGP-2062R Carbide Insert, Grade GP50, TiN - Tool-Flo 572462RN4C
MFR# 572462RN4CISO/ANSI# FLGP-2062RSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description

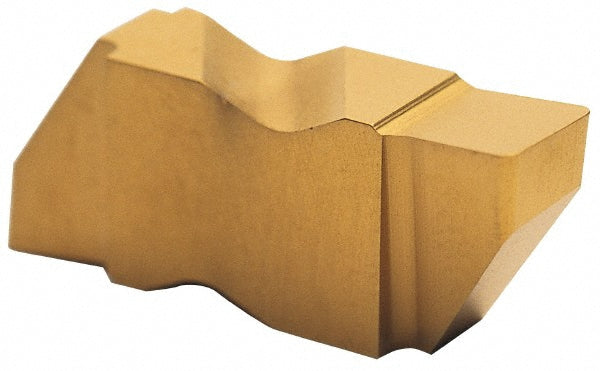

The Tool-Flo 572462RN4C is a FLGP-2062R carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.2190
Cutting width0.0618
Full radiusNo
Gage diameter0.1875
Insert handRight Hand
Insert materialCarbide
Insert size2062
Insert size code2062
Insert styleFLGP
Iso codeFLGP-2062R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall width0.15
RakePositive
Rake angle55
Secondary workpiece materialSteel
