Tool-Flo

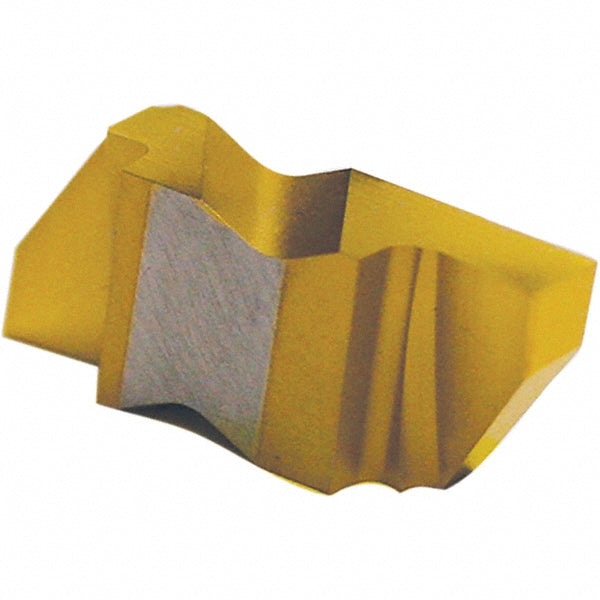

FLG3250R Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 573050RN4E
MFR# 573050RN4EISO/ANSI# FLG3250RCat# FLG-3250RSeries Flo-Lock
$30.70List $39.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 573050RN4E is a FLG3250R solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0200 to 0.0250
Cutting height0.3440
Cutting width0.2500
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3250
Insert size code3250
Insert styleFLG
Insert thickness0.2500
Iso codeFLG3250R
Lead angle3
Manufacturers catalog numberFLG-3250R
Manufacturer gradeGP50
Maximum corner radius0.0250
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0200
Multi use toolNo
Secondary workpiece materialStainless Steel
Single or double endDouble
