Tool-Flo

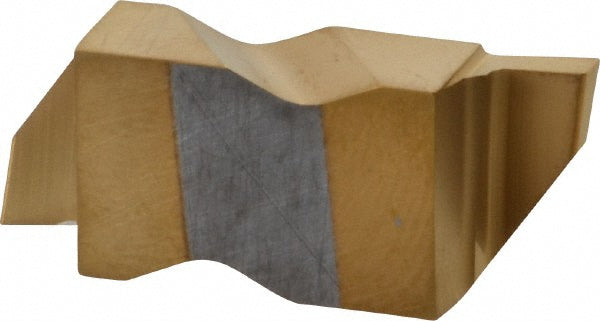

FLGP-3062R Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 573462RN4C
MFR# 573462RN4CISO/ANSI# FLGP-3062RSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 573462RN4C is a FLGP-3062R solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0620
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size3062
Insert size code3062
Insert styleFLGP
Iso codeFLGP-3062R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.1201
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
Secondary workpiece materialSteel
