Tool-Flo
FLGP-3094L Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 573494LN4C
MFR# 573494LN4CISO/ANSI# FLGP-3094LSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description

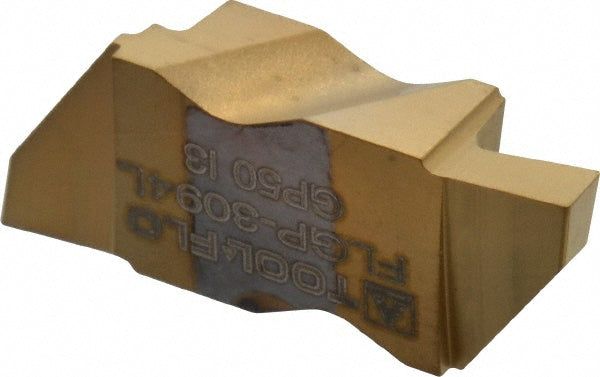

The Tool-Flo 573494LN4C is a FLGP-3094L solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width in3/32
Full radiusNo
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3094
Insert size code3094
Insert styleFLGP
Iso codeFLGP-3094L
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
Secondary workpiece materialSteel
