Tool-Flo
FLGP-3125L Carbide Insert, Grade GP50, TiN - Tool-Flo 573625LN4C
MFR# 573625LN4CISO/ANSI# FLGP-3125LSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description

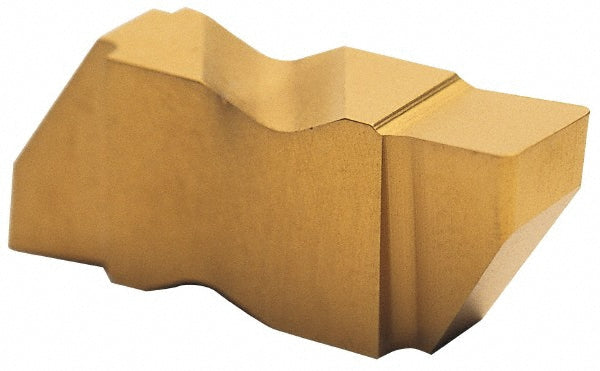

The Tool-Flo 573625LN4C is a FLGP-3125L carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.1252
Full radiusNo
Gage diameter in3/8
Insert handLeft Hand
Insert materialCarbide
Insert size3125
Insert size code3125
Insert styleFLGP
Iso codeFLGP-3125L
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.195
RakePositive
Rake angle55
Secondary workpiece materialSteel
