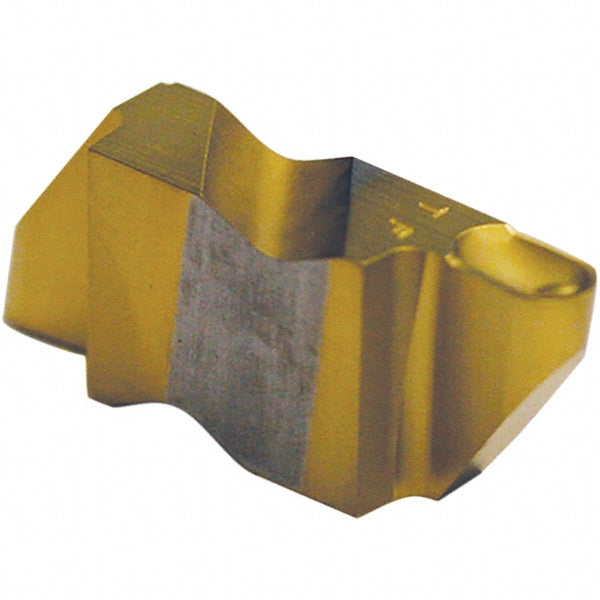

FLR3031LCB Solid Carbide Insert, Grade AC50C, AlTiN - Tool-Flo 593031PLAC50C

Tool-Flo

FLR3031LCB Solid Carbide Insert, Grade AC50C, AlTiN - Tool-Flo 593031PLAC50C

MFR# 593031PLAC50CISO/ANSI# FLR3031LCBCat# FLR-3031L-CBSeries Flo-Lock

$26.44List $33.32 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC50C
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo 593031PLAC50C is a FLR3031LCB solid carbide indexable insert, grade AC50C, AlTiN coated. Suited for steel.

Specifications

Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting height0.3440
Cutting width0.0620
Full radiusYes
Gage diameter0.3750
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3031
Insert size code3031CB
Insert styleFLR
Insert thickness0.1950
Iso codeFLR3031LCB
Lead angle3
Manufacturers catalog numberFLR-3031L-CB
Manufacturer gradeAC50C
Maximum depth of cut0.1250
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Primary workpiece materialSteel
Single or double endDouble
