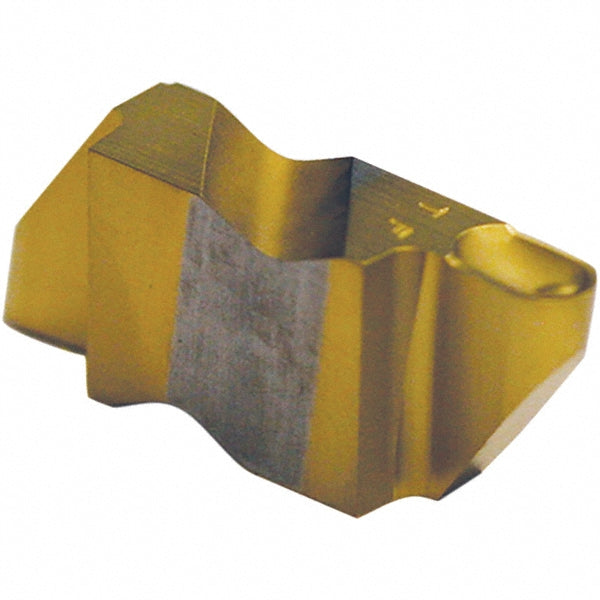

FLR3031RCB Carbide Insert, Grade AC3R, AlTiN - Tool-Flo 593031PRAC3R
MFR# 593031PRAC3RISO/ANSI# FLR3031RCBCat# FLR-3031R-CBSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3R
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 593031PRAC3R is a FLR3031RCB carbide indexable insert, grade AC3R, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting height0.3440
Cutting width0.0620
Full radiusYes
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3031
Insert size code3031CB
Insert styleFLR
Insert thickness0.1950
Iso codeFLR3031RCB
Lead angle3
Manufacturers catalog numberFLR-3031R-CB
Manufacturer gradeAC3R
Maximum depth of cut0.1250
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
