Tool-Flo

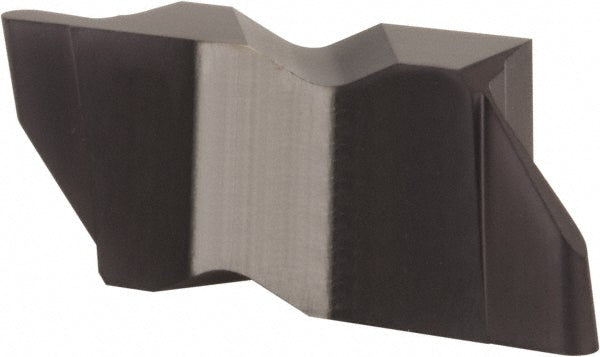

FLR-3031R Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 593031RAC3R
MFR# 593031RAC3RISO/ANSI# FLR-3031RCat# FLR-3031RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 593031RAC3R is a FLR-3031R solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0311
Cutting height0.0500
Cutting width0.0620
Full radiusYes
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size0.375
Insert size code3031
Insert styleFLR
Iso codeFLR-3031R
Lead angle3
Manufacturers catalog numberFLR-3031R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0300
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Rake angle0.00
Single or double endDouble
