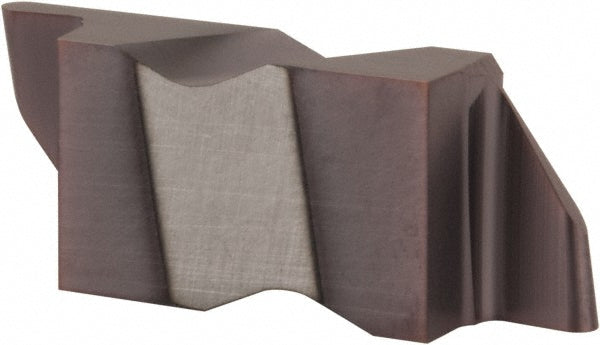

FLR50R Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 593031RAC50C

Tool-Flo

FLR50R Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 593031RAC50C

MFR# 593031RAC50CISO/ANSI# FLR50RCat# FLR-3031RSeries Flo-Lock

$26.44List $33.32 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo 593031RAC50C is a FLR50R solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.

Specifications

Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting height0.1250
Cutting width0.0620
Full radiusYes
Insert handRight Hand
Insert materialSolid Carbide
Insert size3
Insert size code50
Insert styleFLR
Iso codeFLR50R
Lead angle3
Manufacturers catalog numberFLR-3031R
Manufacturer gradeAC50
Maximum depth of cut in1/8
Multi use toolNo
Primary workpiece materialSteel
Single or double endDouble
