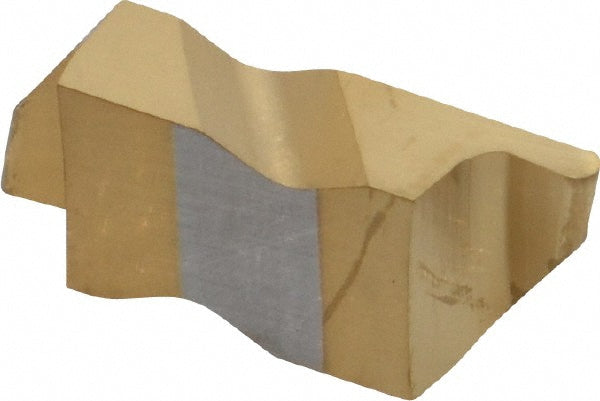

FLR-3031R Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 593031RN4C
MFR# 593031RN4CISO/ANSI# FLR-3031RSeries Flo-Lock
$24.71List $31.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 593031RN4C is a FLR-3031R solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0310
Cutting height0.3440
Cutting width0.0618
Full radiusYes
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size3031
Insert size code3031
Insert styleFLR
Iso codeFLR-3031R
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1252
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
Secondary workpiece materialSteel
