FLR3062RCB Solid Carbide Insert, Grade GP50C, TiN - Tool-Flo 593062PRN4C
MFR# 593062PRN4CISO/ANSI# FLR3062RCBCat# FLR-3062R-CBSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50C
MaterialSolid Carbide
CoatingTiN
Description

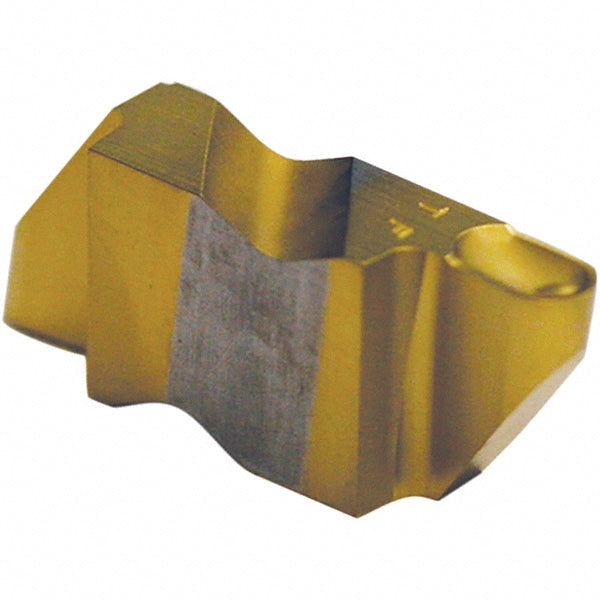

The Tool-Flo 593062PRN4C is a FLR3062RCB solid carbide indexable insert, grade GP50C, TiN coated.
Specifications
Chip breakerP
Coating finishTiN
Coating processPVD
Corner radius0.0620
Cutting height0.3440
Cutting width0.1250
Full radiusYes
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3062
Insert size code3062CB
Insert styleFLR
Insert thickness0.1950
Iso codeFLR3062RCB
Lead angle3
Manufacturers catalog numberFLR-3062R-CB
Manufacturer gradeGP50C
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Secondary workpiece materialSteel
Single or double endDouble
