Tool-Flo
Carbide Insert, Grade AC3, AlTiN - Tool-Flo 593094RAC3R
MFR# 593094RAC3RCat# FLR-3094RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description

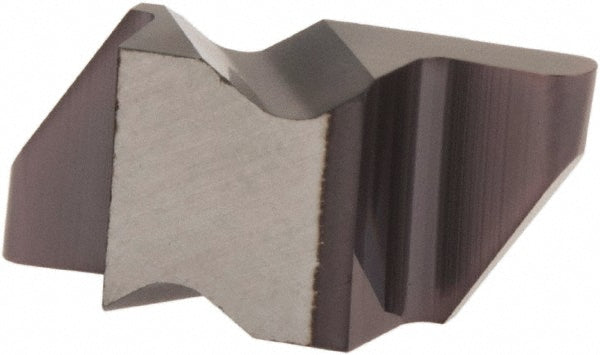

The Tool-Flo 593094RAC3R is a carbide indexable insert, grade AC3, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0940
Cutting height0.3440
Cutting width0.1890
Full radiusYes
Insert handRight Hand
Insert materialCarbide
Insert size3094
Insert styleFLR
Insert thickness0.1950
Lead angle0
Manufacturers catalog numberFLR-3094R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Measurement typeDecimal Inch
Multi use toolNo
RakeNeutral
