Tool-Flo

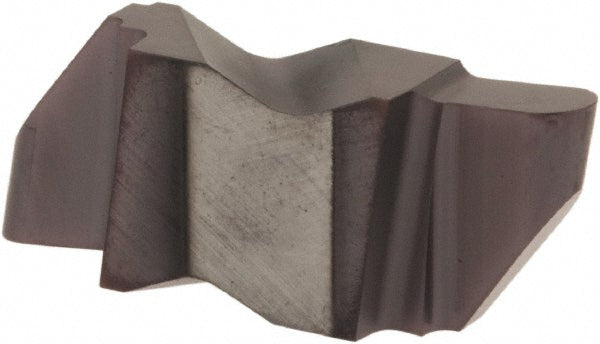

Carbide Insert, Grade AC3, AlTiN - Tool-Flo 593831RAC3R
MFR# 593831RAC3RCat# FLRP-3031RSeries Flo-Lock
$29.46List $37.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 593831RAC3R is a carbide indexable insert, grade AC3, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting height0.3440
Cutting width0.062
Full radiusYes
Insert handRight Hand
Insert materialCarbide
Insert size3031
Insert styleFLRP
Insert thickness0.2550
Lead angle0
Manufacturers catalog numberFLRP-3031R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.1250
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
RakePositive
