Tool-Flo

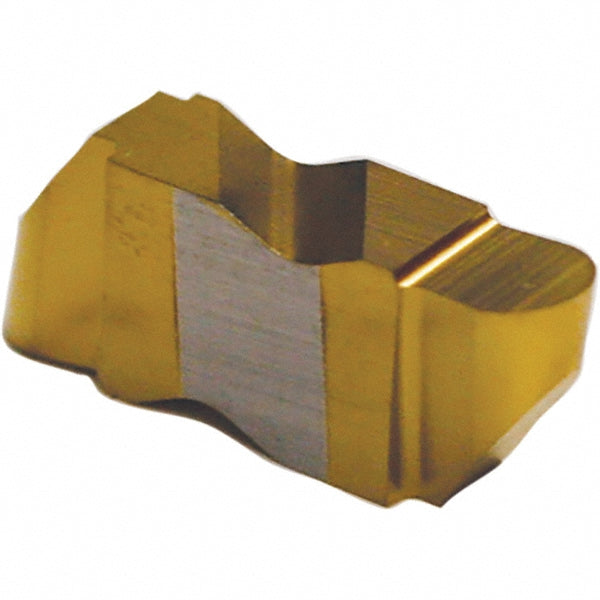

FLRP-3047R Carbide Insert, Grade AC50C, AlTiN - Tool-Flo 593847RAC50C
MFR# 593847RAC50CISO/ANSI# FLRP-3047RCat# FLRP-3047RSeries Flo-Lock
$29.46List $37.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50C
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 593847RAC50C is a FLRP-3047R carbide indexable insert, grade AC50C, AlTiN coated. Suited for steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0470
Cutting height0.3440
Cutting width0.0940
Full radiusYes
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3047
Insert size code3047
Insert styleFLRP
Insert thickness0.1950
Iso codeFLRP-3047R
Lead angle3
Manufacturers catalog numberFLRP-3047R
Manufacturer gradeAC50C
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Rake angle5
