Tool-Flo

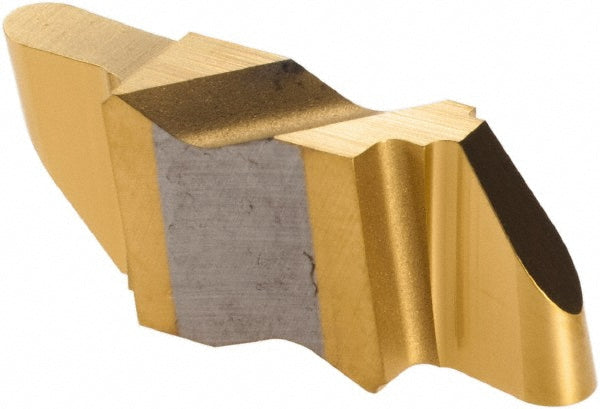

FLRP-3062L Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 593862LN4C
MFR# 593862LN4CISO/ANSI# FLRP-3062LSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 593862LN4C is a FLRP-3062L solid carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0620
Cutting height0.3440
Cutting width0.1252
Full radiusYes
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3062
Insert size code3062
Insert styleFLRP
Iso codeFLRP-3062L
Lead angle3
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
Secondary workpiece materialSteel
