Tool-Flo
FLR-4062L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 594062LJ5R
MFR# 594062LJ5RISO/ANSI# FLR-4062LSeries Flo-Lock
$35.64List $44.92
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description

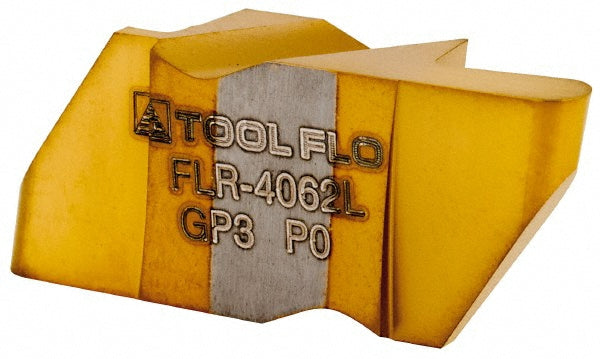

The Tool-Flo 594062LJ5R is a FLR-4062L solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0620
Cutting height0.4530
Cutting width0.1252
Full radiusYes
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size4062
Insert size code4062
Insert styleFLR
Iso codeFLR-4062L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Multi use toolNo
Overall width0.2550
RakePositive
Rake angle55.00
Secondary workpiece materialStainless Steel
