Tool-Flo

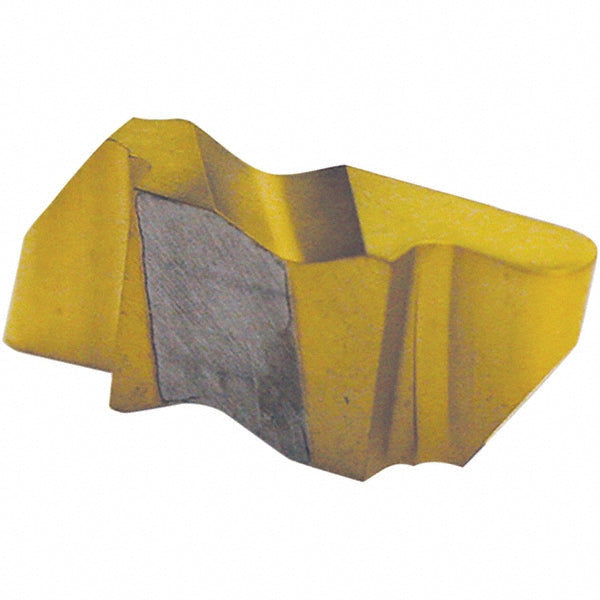

FLR-4062R Carbide Insert, Grade AC50C, AlTiN - Tool-Flo 594062RAC50C
MFR# 594062RAC50CISO/ANSI# FLR-4062RCat# FLR-4062RSeries Flo-Lock
$37.40List $47.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50C
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 594062RAC50C is a FLR-4062R carbide indexable insert, grade AC50C, AlTiN coated. Suited for steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0620
Cutting height0.4530
Cutting width0.1250
Full radiusYes
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size4062
Insert size code4062
Insert styleFLR
Insert thickness0.2550
Iso codeFLR-4062R
Lead angle3
Manufacturers catalog numberFLR-4062R
Manufacturer gradeAC50C
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
Primary workpiece materialSteel
